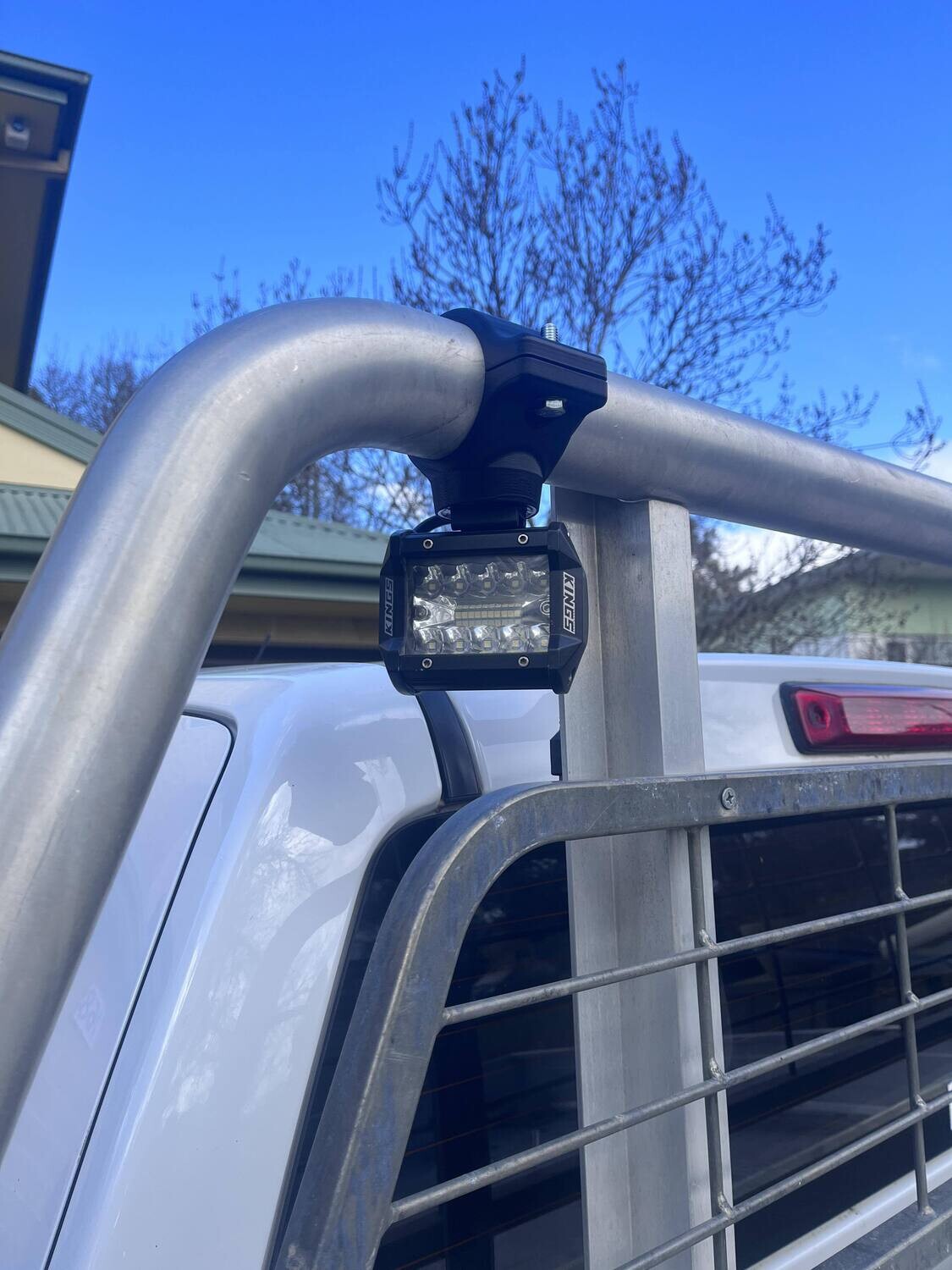

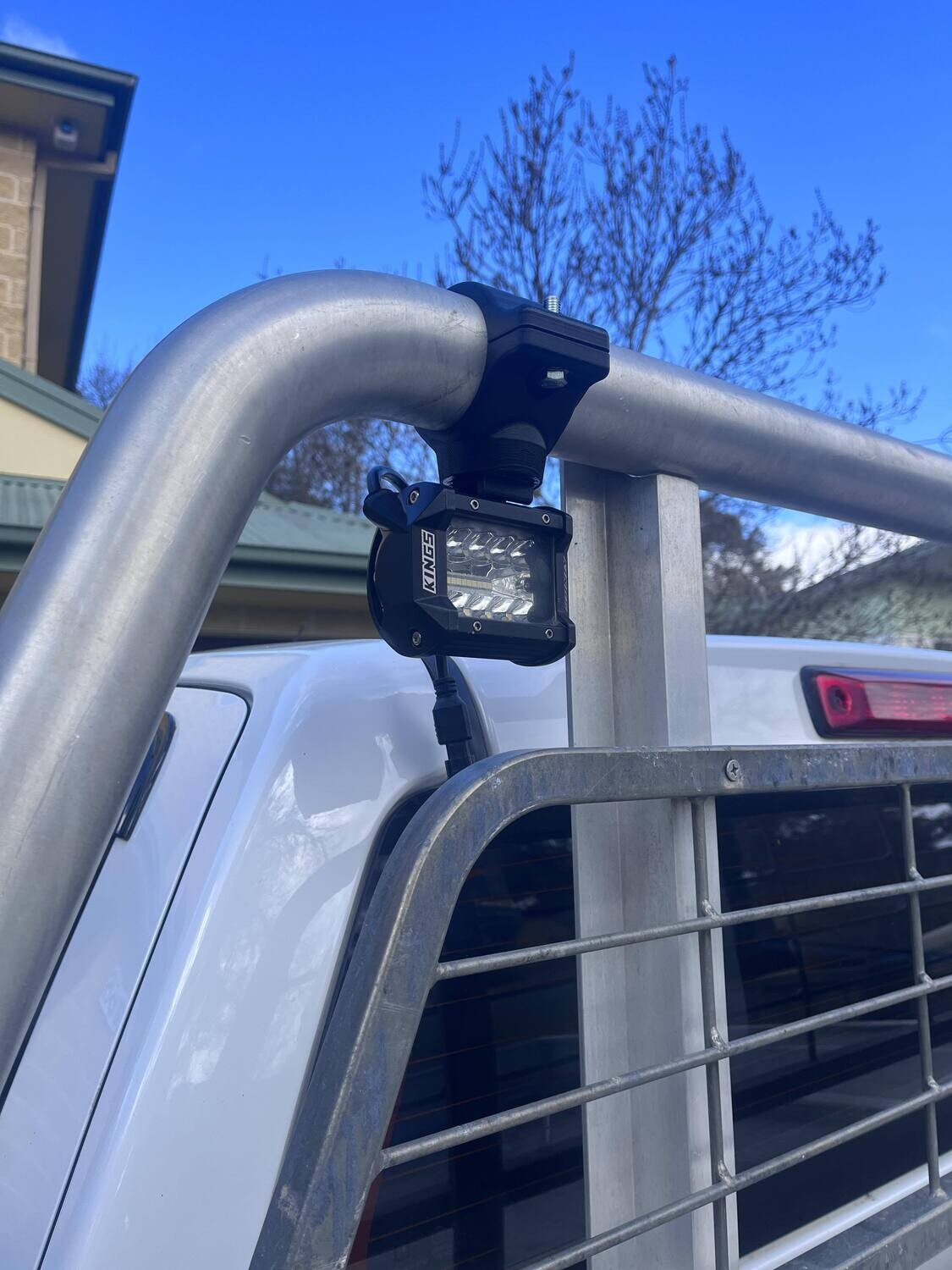

This nifty design lets you mount a work light to the tray of a ute (with main bar 63mm) and have it pointed anywhere!

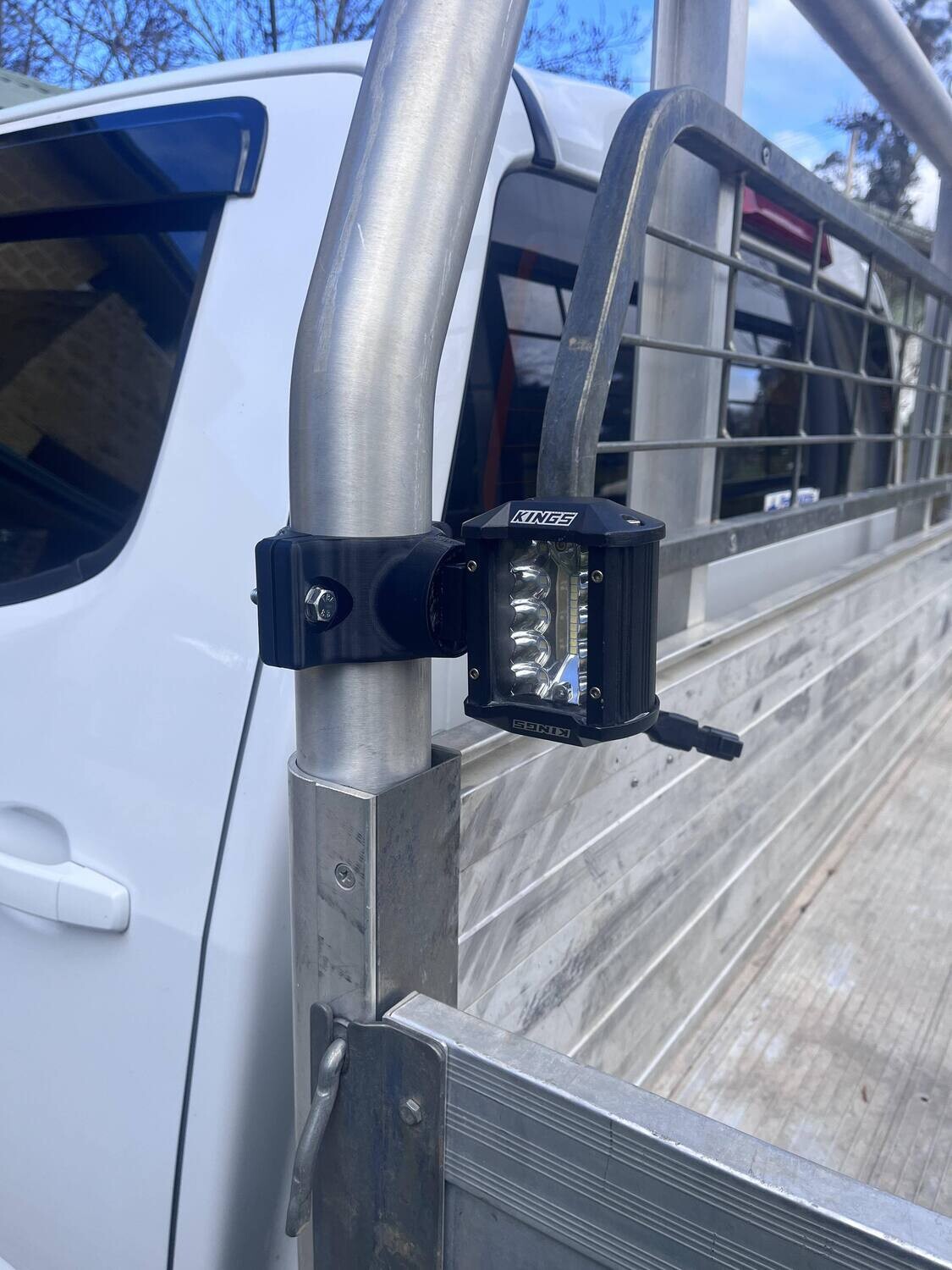

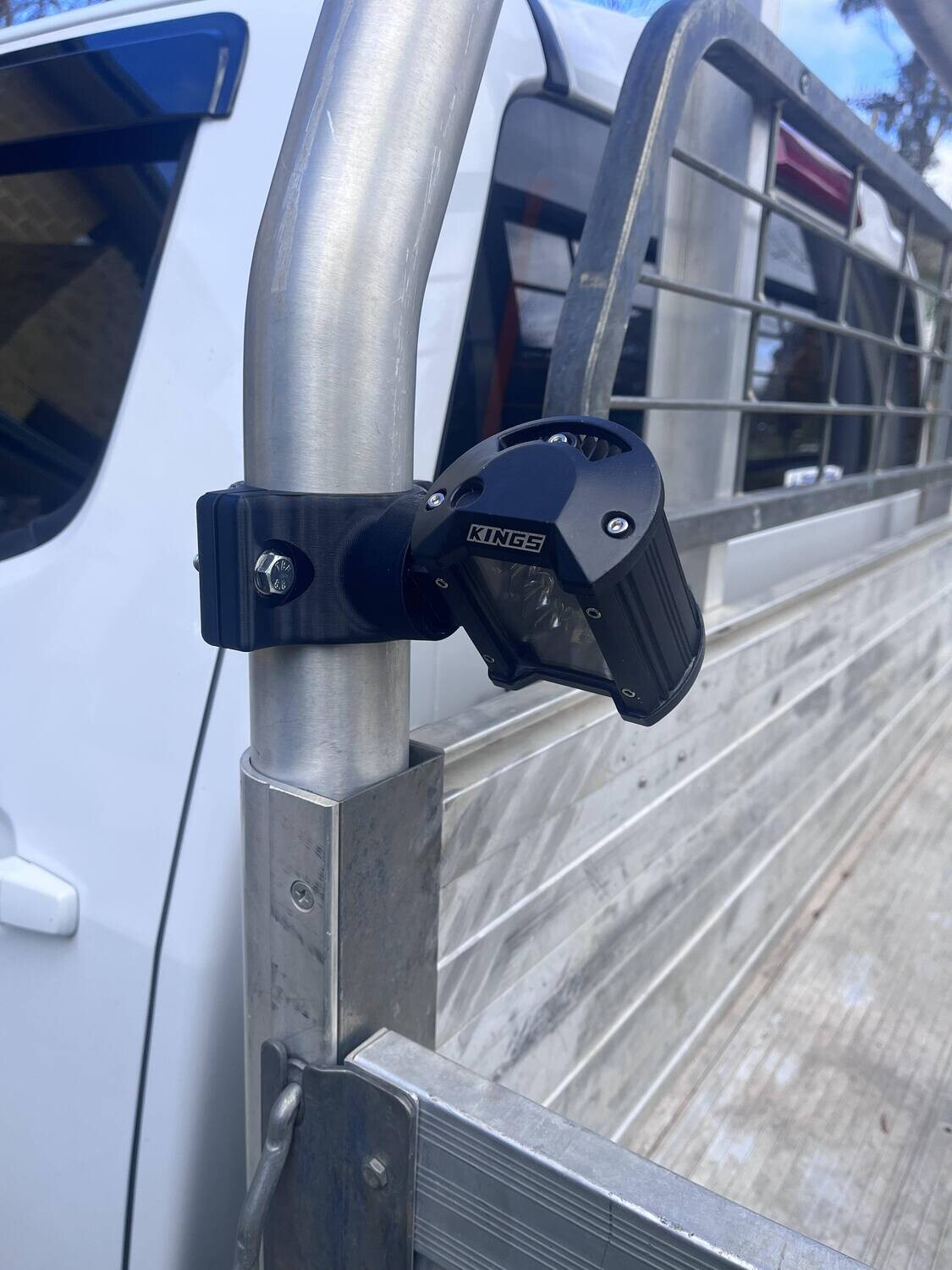

It can be mounted to the tray 360deg, then can be adjusted on it's base 360deg!
Features:

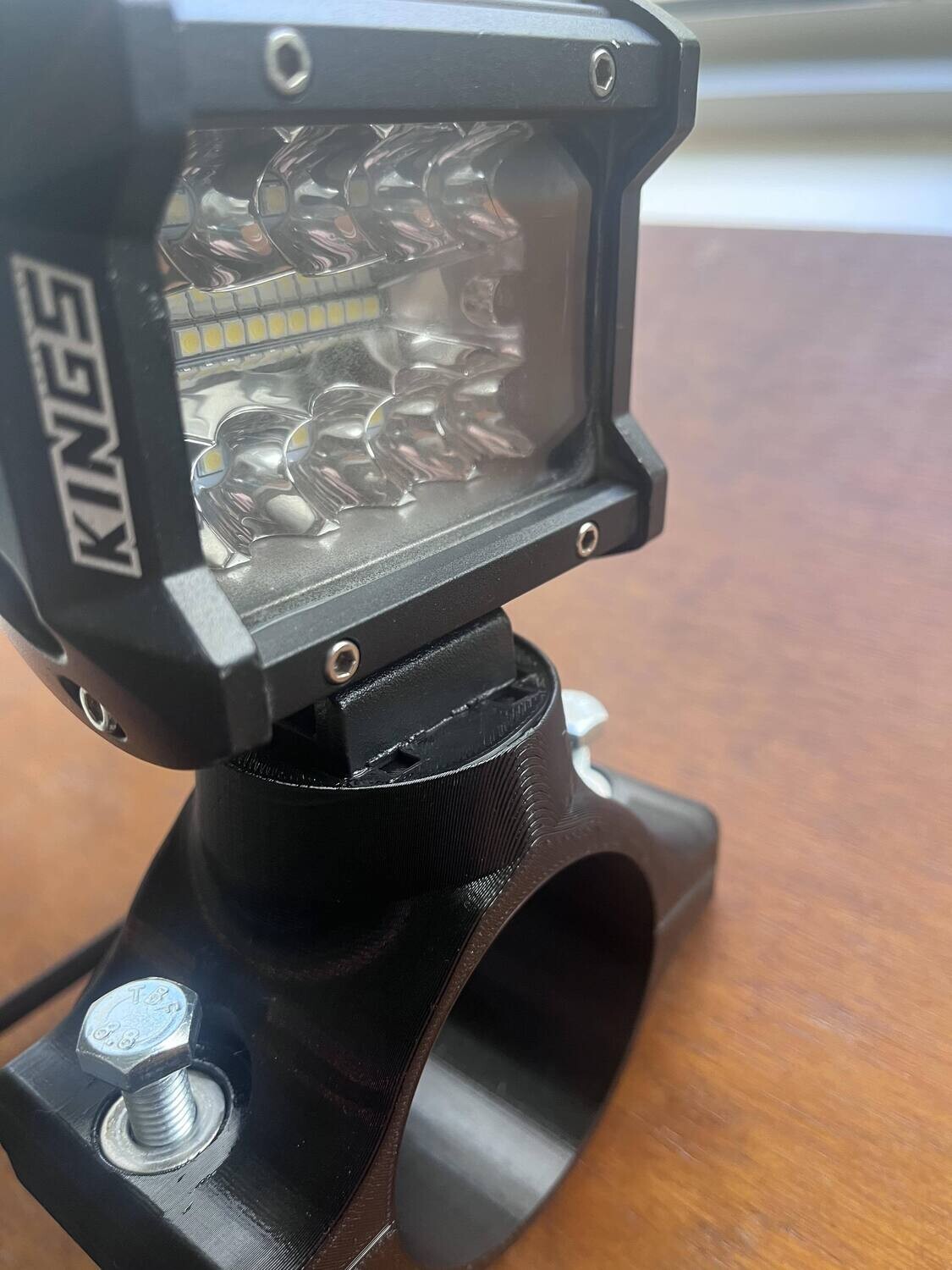

- 50mm diameter base, I'm sure plenty of other work lights would fit on this.

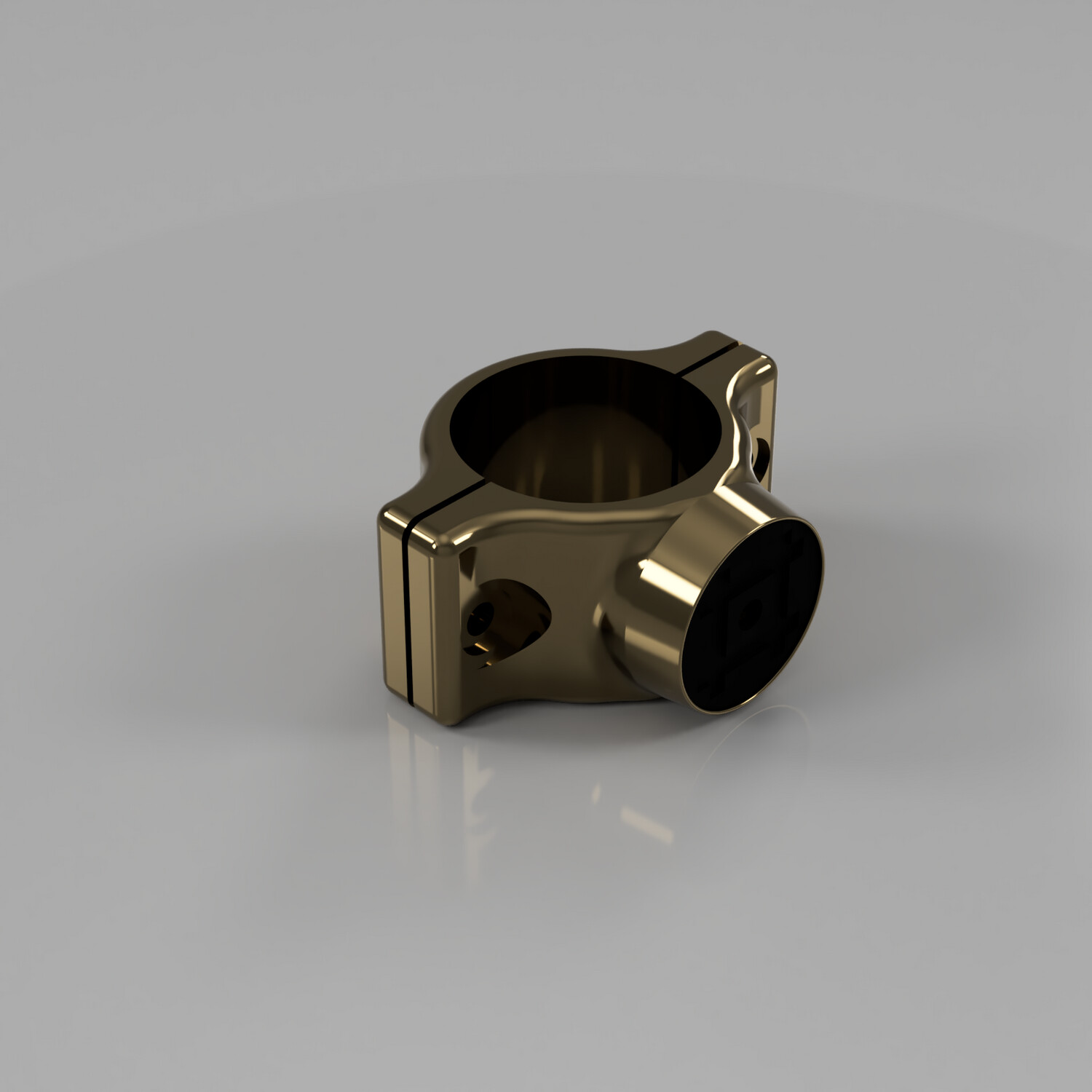

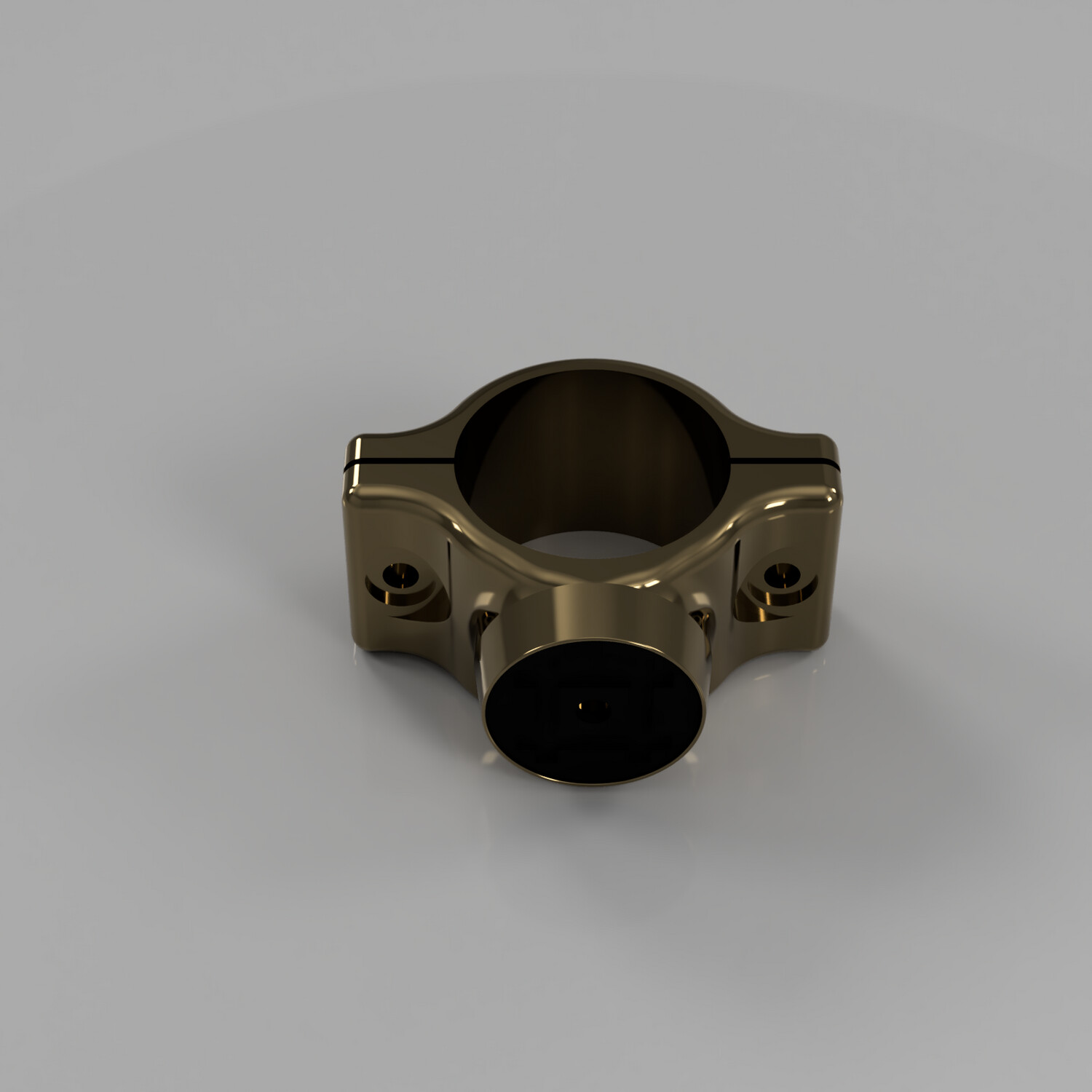

- Grey part (in the Fusion360 screenshot) is intended to be a TPU spacer. This allows the light position to be adjusted 360deg while remaining firmly fastened.
- Divots sized perfectly for M8 washers and bolts.
- Clamps perfectly over the main bar of the tray (63mm diameter main bar).
Additional parts required:
- 2x M8 bolts
- 2x M8 locknuts (regular nuts not recommended)
- 4x M8 washers (16mm diameter)
- 1x Mounting kit with original working light
